PCM Hierarchy Flag Report

Roles with access to the PCM Hierarchy Flag Reports

• Advanced Reporting
• Acquisition Sensitive Reporting
• EDA Executive Reporting User

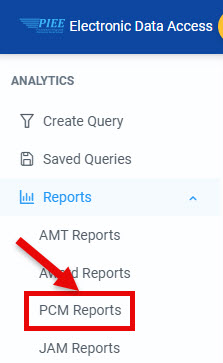

Expand the Reports menu under Analytics in EDA and select the PCM Reports option.

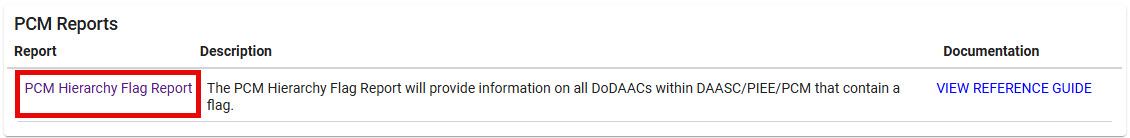

In the PCM Reports section, select the PCM Hierarchy Flag Reports.

The PCM Hierarchy Flag page displays. Enter search criteria to retrieve desired data.

PCM Hierarchy Flag Report Search Criteria:

DoDAAC Search By:

Search By Organization:

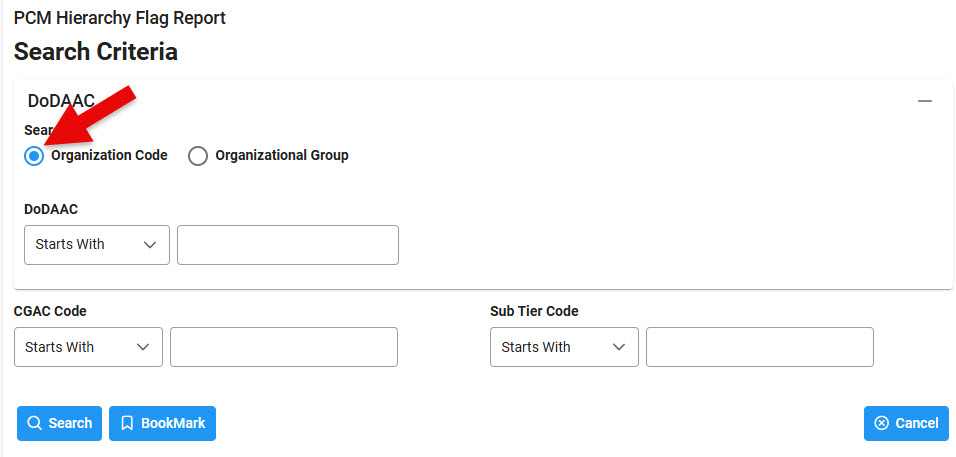

• Organization Code
  (fields display when Organization Code button is selected)
  • DoDAAC (parameters: Starts With / Equal to)
  • CGAC Code (parameters: Starts With / Equal to)
  • Sub Tier Code (parameters: Starts With / Equal to)

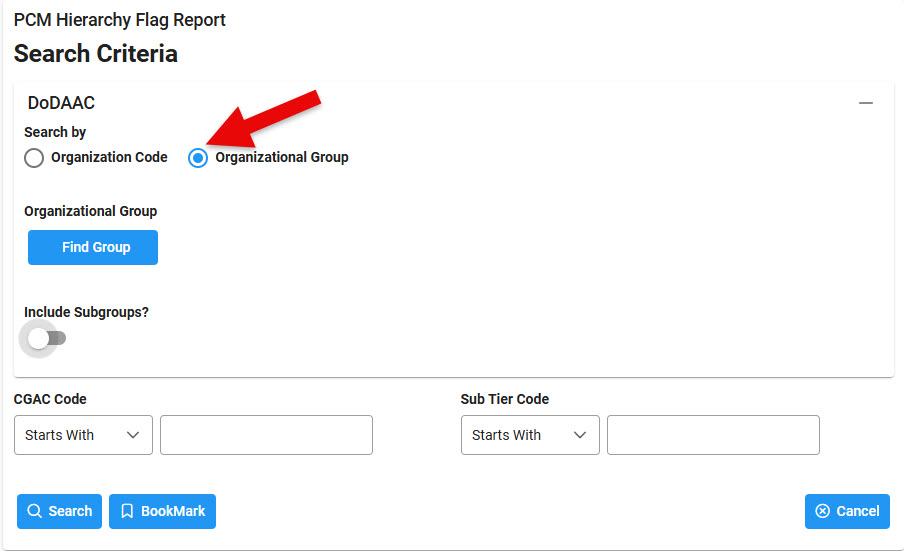

• Organization Group
  (fields display when Organization Group button is selected)
  • DoDAAC Group Find Organization group by Group Name
    (pop-up displays when Find Group is clicked)
    • DoDAAC Group Find Organization group by Group Name
    • DoDAAC PIEE Level 2 (drop-down includes PIEE Level 2 Organization Groups)
      • Buttons
        • Save
        • Cancel
    • Include Subgroups? (field is a toggle)
    • CGAC Code (parameters: Starts With / Equal to)
    • Sub Tier Code (parameters: Starts With / Equal to)

Buttons:

• Search
• Bookmark
• Cancel

Click the Search button after entering the search criteria. The search results display on the following page.

The PCM Hierarchy Flag Report table displays the search results.

PCM Hierarchy Flag Report Results

PCM Hierarchy Flag Report Results Tables

• PIEE Active Flag Total Counts
  • Procurement
  • Grant
  • Contract Admin
  • Contractor
  • Payment Office
  • Funding office
• PCM Active Flag Total Counts
  • Procurement
  • Grant
  • Contract Admin
  • Contractor
  • Payment Office
  • Funding Office
• DAASC Active Flag Total Count
  • Procurement
  • Grant
  • Contract Admin
  • Contractor
  • Payment Office
  • Funding Office

PCM Hierarchy Flag Records Columns

• DoDAAC
• Group Name Level 1-7
• Activity Name
• Address Line 1
• Address Line 2
• Address Line 4
• City
• State Code
• Postal Code
• PIEE Procurement Indicator
• PIEE Grant Indicator
• PIEE Contract Admin Indicator
• PIEE Contractor Indicator
• PIEE Payment Office Indicator
• PIEE Funding Office Indicator
• PCM Procurement Indicator
• PCM Grant Indicator
• PCM Contract Admin Indicator
• PCM Contractor Indicator
• PCM Payment Office Indicator
• PCM Funding Office Indicator
• DAASC Procurement Indicator
• DAASC Grant Indicator
• DAASC Contract Admin Indicator
• DAASC Contractor Indicator
• DAASC Payment Office Indicator
• DAASC Funding Office Indicator
• CGAC Code
• Sub Tier Code

Buttons:

• Export
  • As CSV
  • As Excel
• Save Search
• Refine Search
• New Search

NOTE: The columns are sortable.

Click the Export button on the search results page to export as CSV or Excel. A job runs to download the file.

Viewing the Available Downloads of Reports

In the navigation panel, under the Task Menu, select Task Download

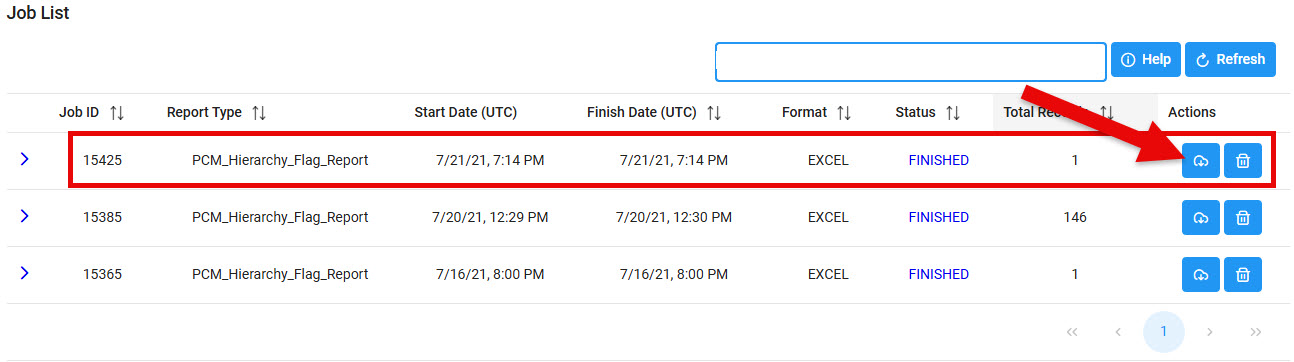

The Job List page appears. Click the Download button in the Action column.

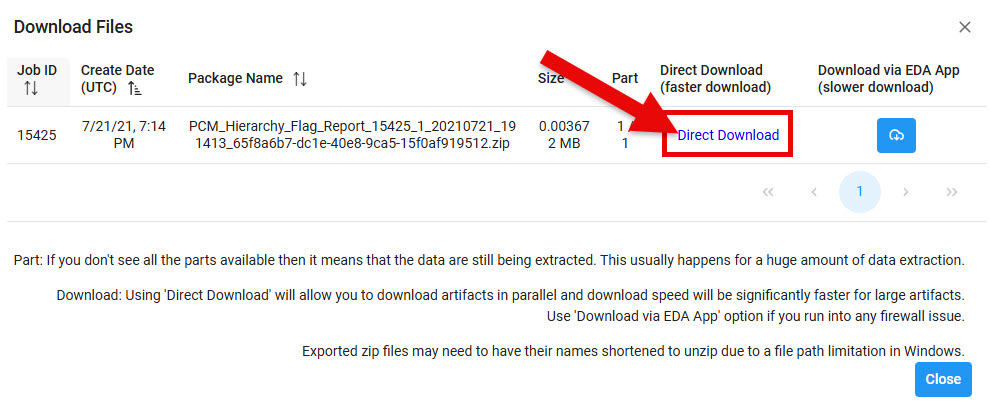

The Download Files pop-up appears with job details. Select the Direct Download link in the Direct Download (faster download) column.

The system downloads the file to the local machine based on browser settings.

PCM Hierarchy Flag Records Columns

• DoDAAC
• Group Name Level 1-7
• Activity Name
• Address Line 1
• Address Line 2
• Address Line 4
• City
• State Code
• Postal Code
• PIEE Procurement Indicator
• PIEE Grant Indicator
• PIEE Contract Admin Indicator
• PIEE Contractor Indicator
• PIEE Payment Office Indicator
• PIEE Funding Office Indicator
• PCM Procurement Indicator
• PCM Grant Indicator
• PCM Contract Admin Indicator
• PCM Contractor Indicator
• PCM Payment Office Indicator
• PCM Funding Office Indicator
• DAASC Procurement Indicator
• DAASC Grant Indicator
• DAASC Contract Admin Indicator
• DAASC Contractor Indicator
• DAASC Payment Office Indicator
• DAASC Funding Office Indicator
• CGAC Code
• Sub Tier Code

Sample Export
